Quick Details

  • Condition: New
  • Type: Impact Crusher
  • Application: Mining,quarry, construction,
  • Motor Type: AC Motor
  • Power(W): 2000
  • Capacity(t/h): 120-520
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: Great Wall
  • Model Number: VSI Sand Machine
  • Dimension(L*W*H): 4140*2280*2425mm
  • Weight: 10.3
  • Certification: ISO & CE
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product: VSI Sand Machine
  • Max. Feeding Sizes(mm): 35-50
  • Motor: Chinese Famous Brand or As Request
  • Installation: Engineer Guide
  • After-sale Service: Lifetime Warranty
  • Spare parts: Perennial Supply
  • Advantage: High quality with reasonable price
  • Color: As you want
  • Export Market: Eastern Europe, Middle East Asia, Africa, etc.
  • Factory Visit: Welcome

Packaging & Delivery

Packaging Details VSI Sand Machine :Waterproof Wooden Package or as Clients' Request
Delivery Time 20-25 days after receiving deposit



"Great Wall Make Great Machine"

Different Colors&Packages are available

VSI Sand Machine



I. VSI Sand Machine Usage and Application



This sand machine is  an advanced and high-efficiency equipment. It is the latest researched results basing on Germany technology. The machine is professional in producing qualified sand and stone for highway, high-speed railway, high building, city project, hydropower dam constructions, and concrete mixing plant. It is widely used in sand making and stone reshaping industry.







II. VSI Sand Machine Features



1. Oil supplied by two oil pumps, stops automatically if there is no oil; cooled by water, heating the motor firstly if start the machine in winter.
2. Hydraulic lifting when changing or checking the spare parts which makes it easy and convenient in maintenance.
3. Famous brand SKF or TIMKEN of the bearing makes the machine work well and few problems.
4. Vibrating alarm device; if the crusher works abnormally, alarm will sound to make the machine stop working so as to protect the crusher.
5. Special feeding structure; rock on rock, and rock on iron in the crusher making the stone to be crushed and reshaped.
6. Unique dustproof seal system, protects the lubrications parts from the dust outside.
7. Perfect design on material bumping angle reduces the friction between raw material and quick-wear parts, prolongs the service time of quick-wear parts and cuts the cost.







III. VSI Sand Machine Main Specifications



Model

VSI-7611

VSI-8518

VSI-9526

VSI-1140

Capacity
(t/h)

Center and Sides Feeding

120-180

200-260

300-380

450-520

Center Feeding

60-90

100-130

150-190

225-260

Max. Feeding Size (mm)

Soft Material

35

40

45

50

Hard Material

30

35

40

45

Rotation Speed(rpm)

1700-1890

1520-1690

1360-1510

1180-1310

Double Motor Power (Kw)

110

180

264

400

Overall Dimension
L×W×H (mm)

3700×2150×2100

4140×2280×2425

4560×2447×2778

5000×2700×3300

Weight (t)

7.8

10.3

16

25.6

Vibration Sensor

Inspection scope: 0.1-20mm/s continual adjustment

Hydraulic oil pump

Motor Power of Double Oil Pump(Kw)

2×0.31

Overall Dimension
L×W×H (mm)

820×520×1270

Power of Oil Tank Heater(Kw)

2

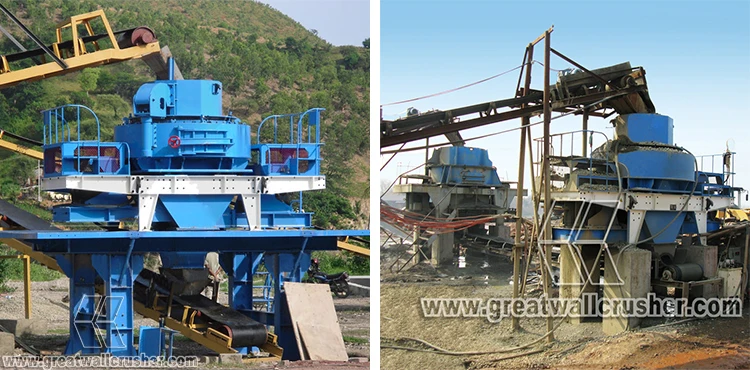

  Customer's site Picture







 About Us:



With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.



Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant, as well as building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.



Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.



"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.



During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.







 Services:



1.Pre-sales Service
 Offering comprehensive technical and business consultation services;
  Proposing th e most suitable scheme and equipment for our clients;

  Designing and fabricating targeted products according to the special requirements of clients;
  Training periodically high qualified service technician.

2.After-sales Service
  Highly inspecting equipments in every working procedure, quality comes first;
  Fast & Safe Delivery;
  Assisting our clients for foundation construction of equipments;
  Dispatching engineers to install and debug equipments;
  Training the first-line operators on site;
  Regularly visit clients to solve production problems;
  Providing life-long maintenance service;
  Providing technical exchanging;







  Why choose us



1. We are Manufacturer  (Not Dealer):

All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.



2. If you are new for this business:

We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.



3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:

1. What is the raw material to be processed? And maximum feeding size of raw material?

2. What is the required output size after crushing?

3. How many tons per hour do you want?



Do not hesitate send us inquiry for more details about the Great Wall VSI Sand Machine.
